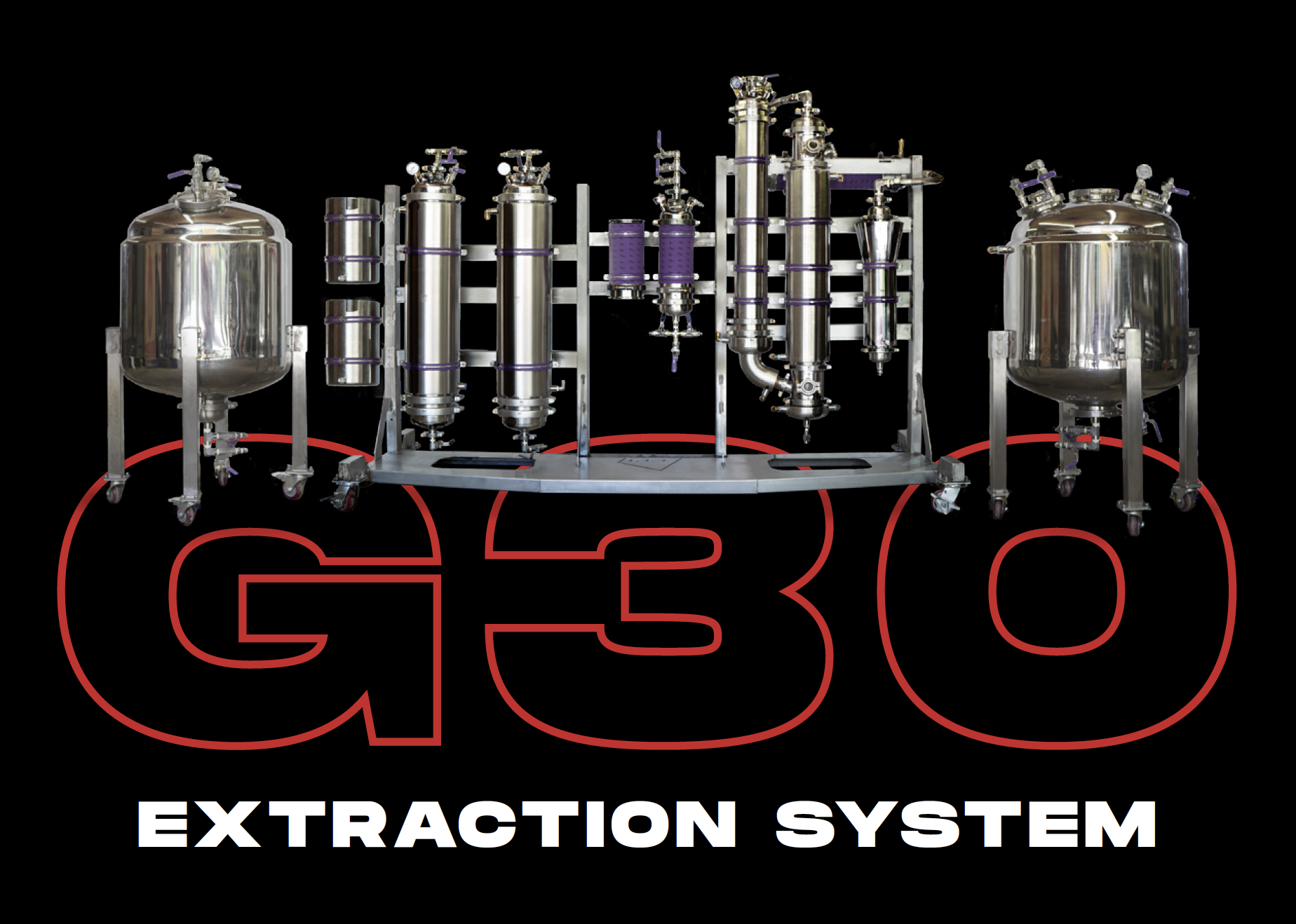

G30 Extraction System

Efficiency Redefined in Cannabis Extraction

The G30 Extraction System by Global Engineering Technologies sets a new standard in cannabis extraction, offering unparalleled throughput and cost efficiency. Designed with your business in mind, the G30 can process up to 500 pounds of dry biomass in an 8-hour shift, significantly reducing labor time and increasing profitability.

Efficiency Redefined in Cannabis Extraction

Specifications:

  • Throughput: Processes 500 lbs of biomass per 8-hour shift

  • Biomass Capacity: 30 lbs dry biomass capacity

  • Recovery Rate: Recovers at a rate of 8 lbs per minute

  • Solvent Capacity: 300 lbs

  • Dimensions: 96” long x 33” deep x 76” tall

  • Motor: Two 1 HP Baldor Motors

  • RPM: 300-1800

  • Voltage: 115V / 220 AC

  • Amps: 20

  • Adjustability: Vertical height adjustments at 1” intervals, pivots up to 90 degrees

  • Construction: Mild-grade powder-coated steel

  • Additional Features: Conveyor-ready hopper, variable speed optidrive with digital readout, FDA-approved food-grade poly brushes, 4-inch dust collection port, 2 E-stops for dual-operators

  • Shipping Weight: 500 lbs

  • Warranty: 1 year on parts

    Chillers & Boilers (Recommended):

    • Chiller Options: Pro Refrigeration Inc. M45 Series, Mydax Inc. CryoDax 60X, Mydax Inc. CryoDax

    • Boiler Options: Lochinvar FTXL™ Fire Tube Boiler
